Power & charging
Solar panel specification: 5.5V / 1.8W; 137×H84mm. Battery specification: 3.7V / 1500mAh.
WALL & FLOOD
Arc Flood Light
MS-BD001
The MS-BD001 is a sensor-equipped solar arc floodlight offered with small-lens, four-in-one-lens and reflective-cup configurations. Each option has a different LED arrangement. The corded solar format allows the lamp and panel positions to be considered separately during installation planning.
APPLICATION & SELECTION
A closer look at MS-BD001.

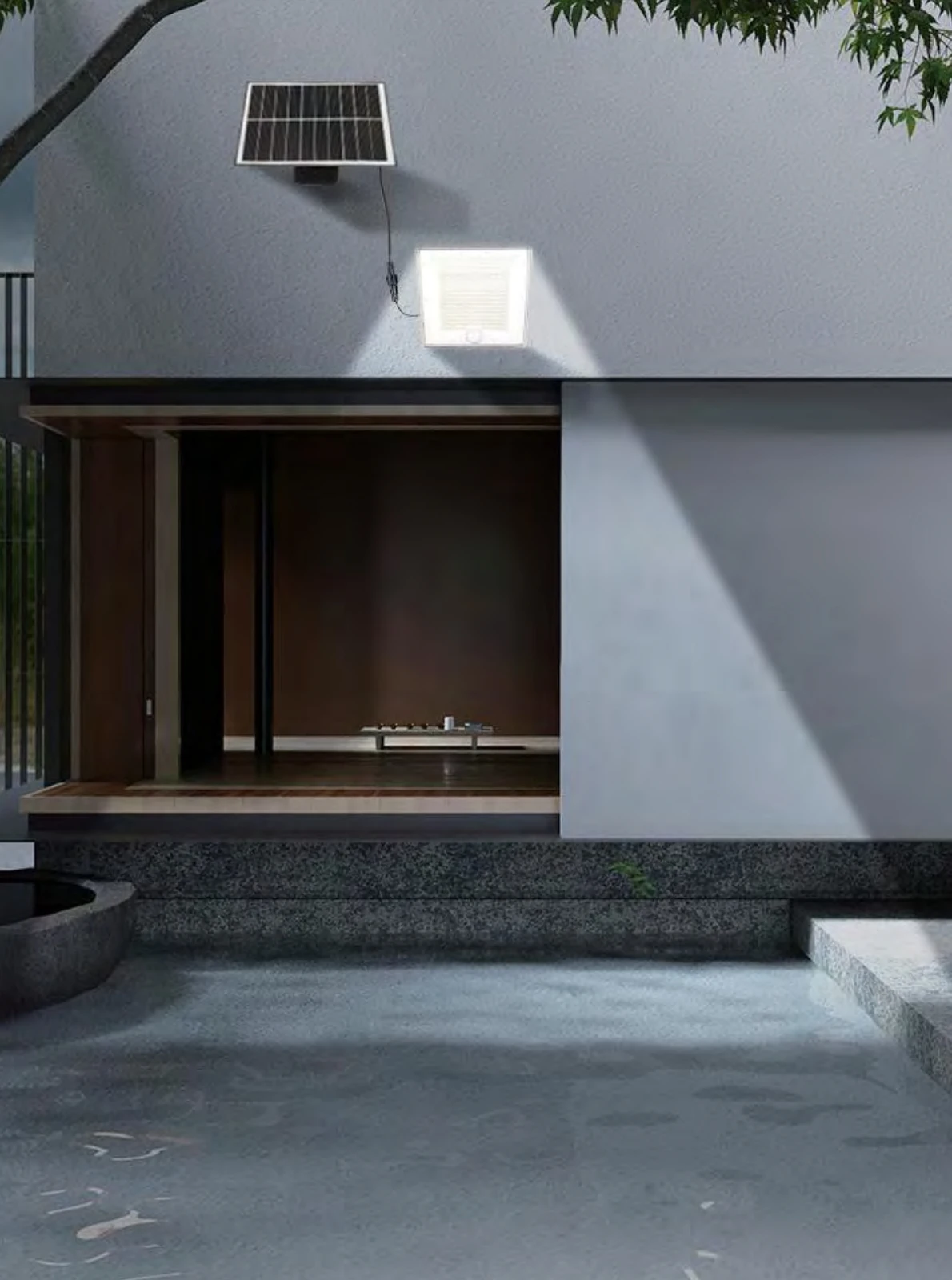

Select the optical configuration before comparing the LED counts in the table. For an entrance or exterior-wall layout, check the cable route as well as the lamp and panel dimensions. State the chosen lens version when requesting a quotation.
Read our lighting selection guideDimensions & construction
Product dimensions: 132×41×143mm.
Light & controls
Options for LED configuration: SMD2835 × 126 pcs | SMD2835 × 184 pcs | SMD2835 × 248 pcs. Rated power: 80W.
PRODUCT INFORMATION
Technical specifications.
Power values are the catalogue ratings for each configuration. Solar panel ratings are listed separately in the table.
With sensor. 16.4ft cord.
| Variant | Power | Product size | Solar panel | Battery | LEDs |
|---|---|---|---|---|---|
| Small lens | 80W | 132×41×143mm | 5.5V / 1.8W 137×H84mm | 3.7V / 1500mAh | SMD2835 × 126 pcs |
| 4-in-1 lens | 80W | 132×41×143mm | 5.5V / 1.8W 137×H84mm | 3.7V / 1500mAh | SMD2835 × 184 pcs |
| Reflective cup | 80W | 132×41×143mm | 5.5V / 1.8W 137×H84mm | 3.7V / 1500mAh | SMD2835 × 248 pcs |
