Power & charging
Options for solar panel specification: 5V / 3.5W; 173×H118mm | 5V / 3.5W 173×H118mm; 6V / 6W 272×H138mm. Options for battery specification: 3.7V / 2400mAh | 3.7V / 2400mAh; 3.7V / 4000mAh.
WALL & FLOOD

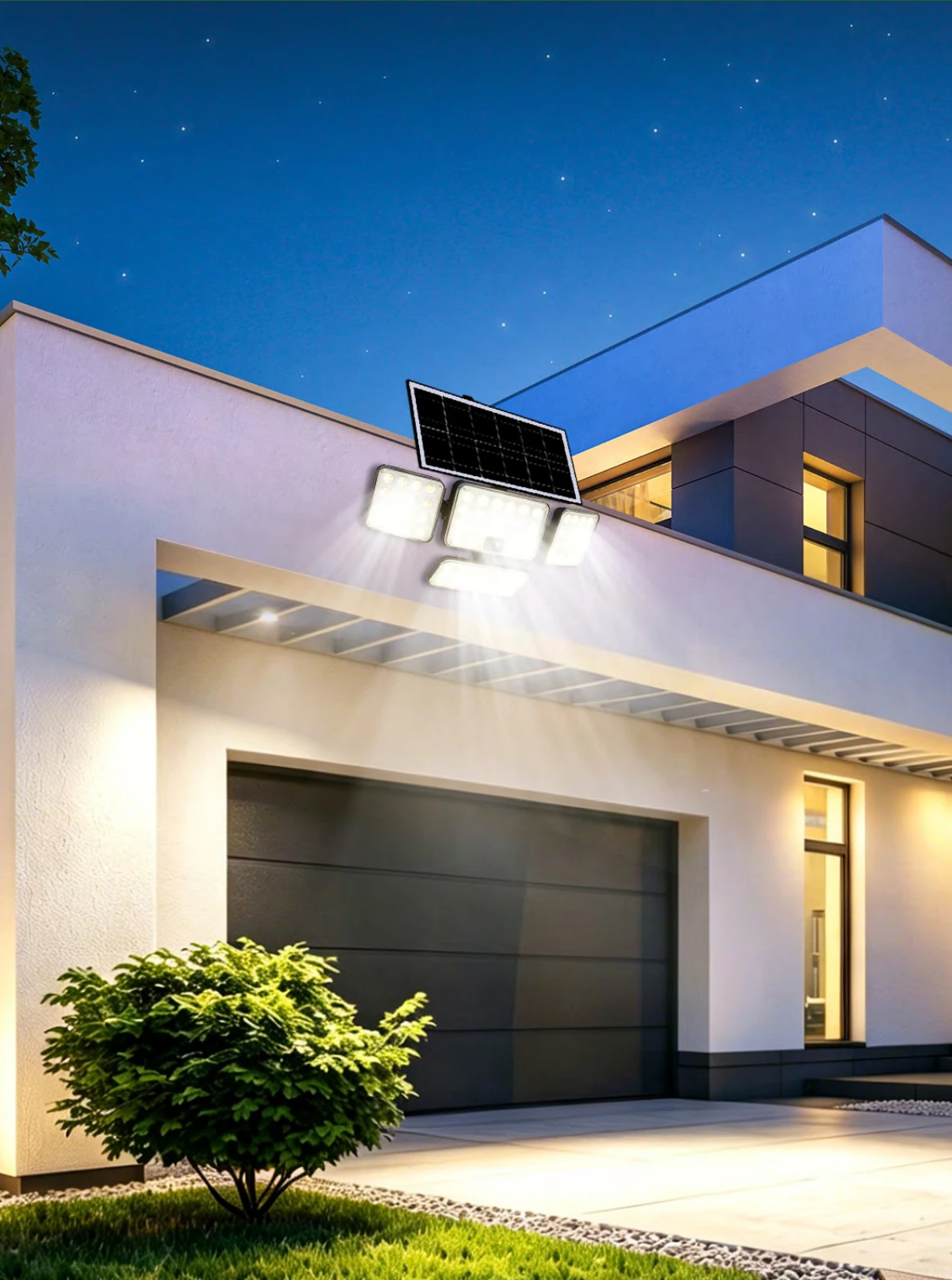

Four-panel Solar Floodlight
MS-BD007-F
The TCLARO MS-BD007-F uses four lamp heads with an F-lens design and wide-angle illumination. Its catalogue configurations differ in overall size, battery capacity and solar-panel rating, so the table presents each combination as a distinct choice for buyers.
APPLICATION & SELECTION
A closer look at MS-BD007-F.
Compare the body dimensions and panel requirements together before selecting a version. Identify the required catalogue power configuration and battery combination in the enquiry, particularly where more than one option is shown within the same table row.
Read our lighting selection guideDimensions & construction
Options for product dimensions: 323×255×55mm | 323×289×55mm.
Light & controls
Options for LED configuration: 2835 / 236 pcs | 2835 / 320 pcs. Options for rated power: 100W | 120W / 200W.
PRODUCT INFORMATION
Technical specifications.
Power values are the catalogue ratings for each configuration. Solar panel ratings are listed separately in the table.
Four lamp heads with F-lens. 270-degree wide-angle illumination.
| Variant | Power | Product size | Solar panel | Battery | LEDs |
|---|---|---|---|---|---|
| F-lens | 100W | 323×255×55mm | 5V / 3.5W 173×H118mm | 3.7V / 2400mAh | 2835 / 236 pcs |
| F-lens | 120W / 200W | 323×289×55mm | 5V / 3.5W 173×H118mm 6V / 6W 272×H138mm | 3.7V / 2400mAh 3.7V / 4000mAh | 2835 / 320 pcs |
