Power & charging
Options for solar panel specification: 6V / 3.5W; 176×121×31mm | 22.5W / 6V | 15W / 6V. The variant table lists the battery specification for each version.
WALL & FLOOD
Solar Floodlight
MS-TGD003F
The MS-TGD003F combines three-sided, wide-angle lighting with modular solar panels that can fold and be removed. Several catalogue-rated power configurations are offered, with different body sizes, solar panels, batteries and LED counts. The variant table supports comparison of the complete combinations.
APPLICATION & SELECTION
A closer look at MS-TGD003F.
Start with the lamp size and panel arrangement required for the installation, then compare each battery and solar-panel combination. State the selected catalogue variant on the enquiry. The power labels identify catalogue configurations and should be read alongside their separate solar-panel ratings.
Read our lighting selection guideDimensions & construction
Options for product dimensions: 195×142×53mm | 280×206×52mm | 352×280×52mm.
Light & controls
The variant table lists the LED configuration for each version. The variant table lists the rated power for each version.
PRODUCT INFORMATION
Technical specifications.
Power values are the catalogue ratings for each configuration. Solar panel ratings are listed separately in the table.
Solar Floodlight | Concave Lens · Version 1
Three-sided, wide-angle illumination. Modular, foldable and removable solar panels. Packing volume is 40% of equivalent-power products.
| Variant | Power | Product size | Solar panel | Battery | LEDs |
|---|---|---|---|---|---|
| 100W | 100W | 195×142×53mm | 6V / 3.5W 176×121×31mm | 3.7V / 3000mAh | 2835 / 136 pcs |
| 200W | 200W | 195×142×53mm | 22.5W / 6V | 3.7V / 4Ah | 2835 / 140 pcs |
| 350W | 350W | 280×206×52mm | 15W / 6V | 3.2V / 10Ah | 2835 / 320 pcs |
| 600W | 600W | 352×280×52mm | 22.5W / 6V | 3.2V / 15Ah | 2835 / 520 pcs |

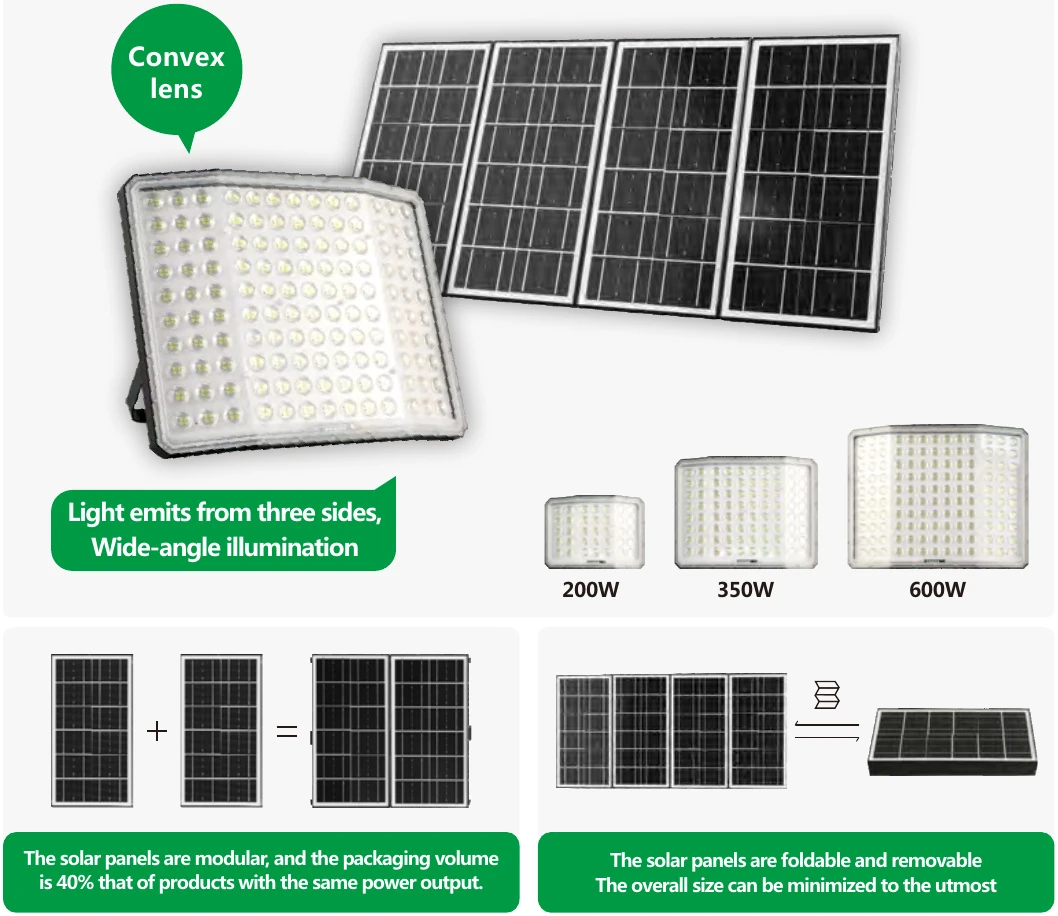

Solar Floodlight | Convex Lens · Version 2
Three-sided, wide-angle illumination. Modular, foldable and removable solar panels. Packing volume is 40% of equivalent-power products.
| Variant | Power | Product size | Solar panel | Battery | LEDs |
|---|---|---|---|---|---|
| 100W | 100W | 195×142×53mm | 6V / 3.5W 176×121×31mm | 3.7V / 3000mAh | 2835 / 136 pcs |
| 200W | 200W | 195×142×53mm | 22.5W / 6V | 3.7V / 4Ah | 2835 / 140 pcs |
| 350W | 350W | 280×206×52mm | 15W / 6V | 3.2V / 10Ah | 2835 / 320 pcs |
| 600W | 600W | 352×280×52mm | 22.5W / 6V | 3.2V / 15Ah | 2835 / 520 pcs |

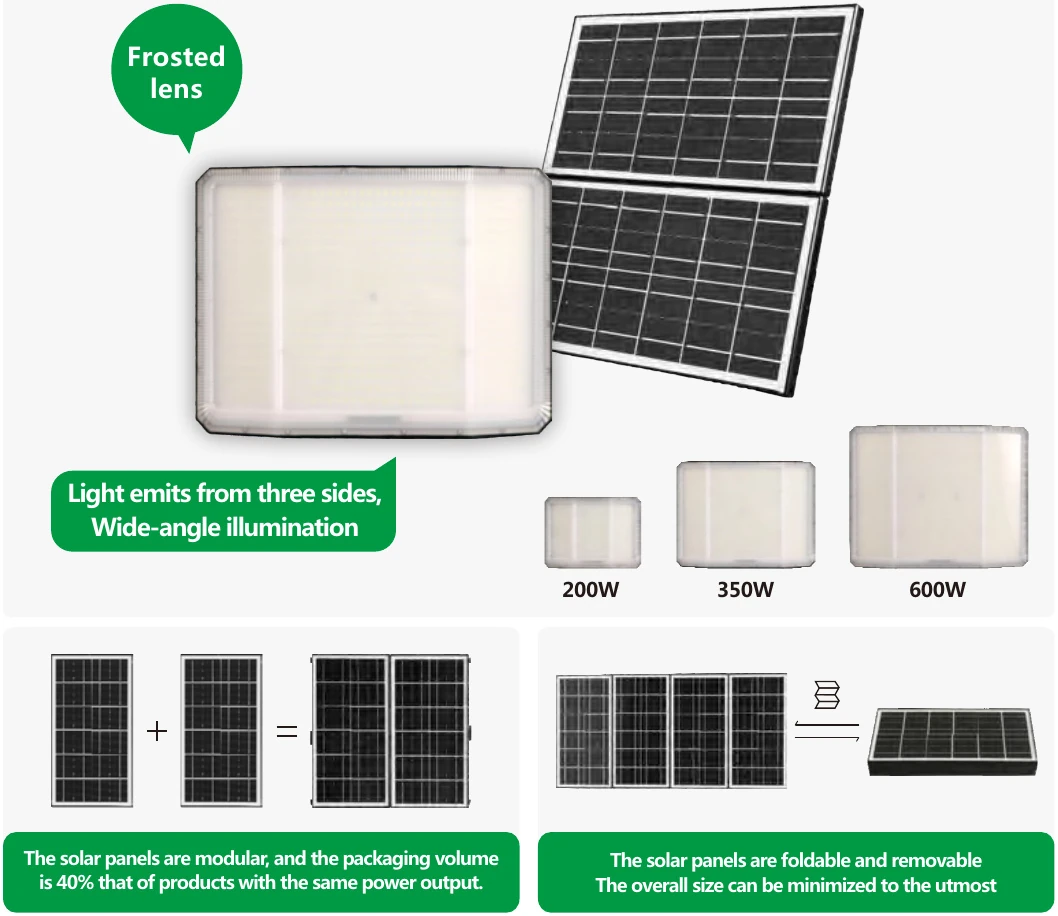

Solar Floodlight | Frosted Lens · Version 3
Three-sided, wide-angle illumination. Modular, foldable and removable solar panels. Packing volume is 40% of equivalent-power products.
| Variant | Power | Product size | Solar panel | Battery | LEDs |
|---|---|---|---|---|---|
| 100W | 100W | 195×142×53mm | 6V / 3.5W 176×121×31mm | 3.7V / 3000mAh | 2835 / 136 pcs |
| 200W | 200W | 195×142×53mm | 22.5W / 6V | 3.7V / 4Ah | 2835 / 140 pcs |
| 350W | 350W | 280×206×52mm | 15W / 6V | 3.2V / 10Ah | 2835 / 320 pcs |
| 600W | 600W | 352×280×52mm | 22.5W / 6V | 3.2V / 15Ah | 2835 / 520 pcs |
